Details

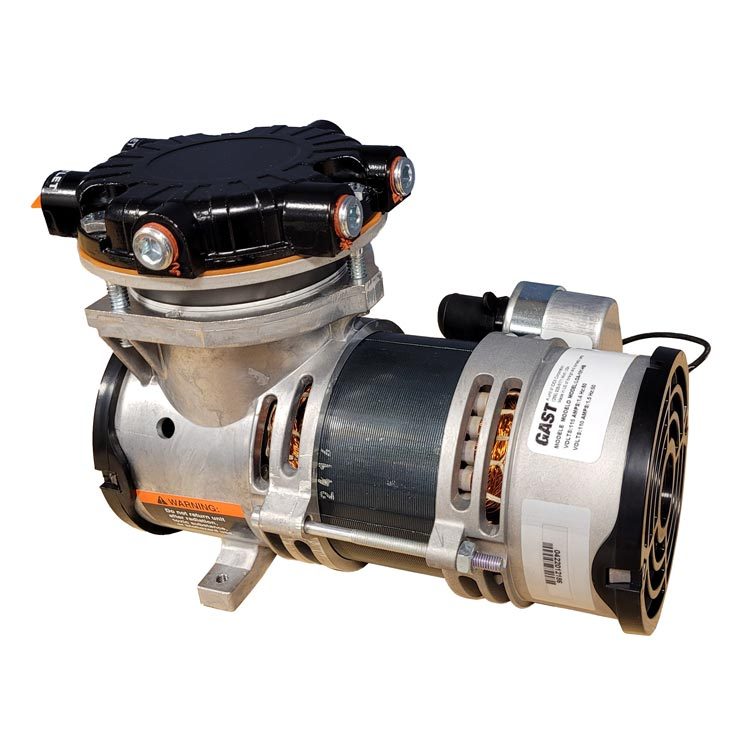

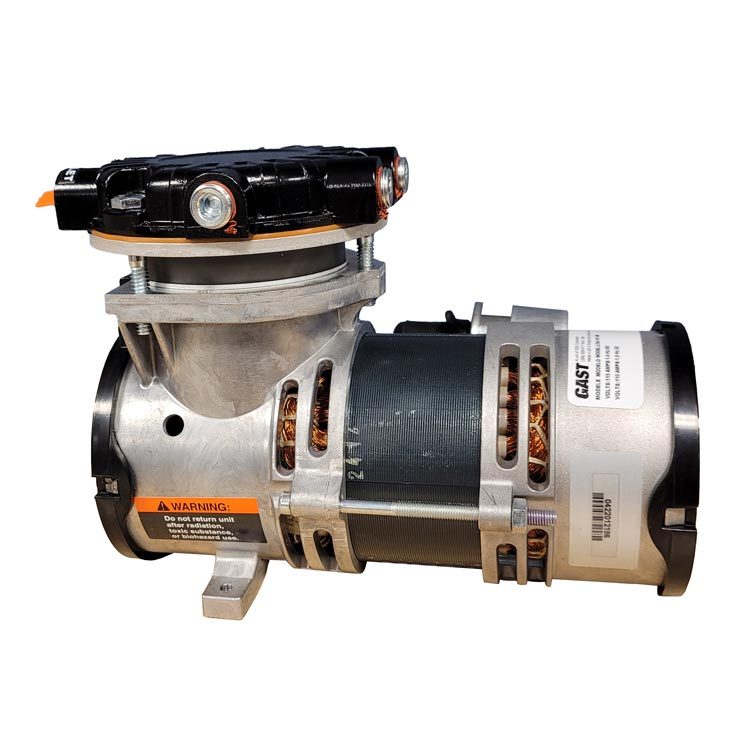

Lightweight combination vacuum pump and compressor
This lightweight yet durable offers oil-less operation to ensure the discharge air remains free of contamination from lubricants. It can be used as a compressor or vacuum pump for maximum flexibility and its quiet operation makes it ideal for noise sensitive environments while performing vacuum infusion processes, as well as may industrial applications. In addition, this pumps simple field serviceability extends the life of the product and maximizes uptime.
Specifications
| Thermal Protection | YES |
| Operating Voltage | 110/115 |
| Regulatory Approval | cURus / CE |
| Flow @ 50hz | 0.66 cfm ( 1.12 m3h ) |
| Flow @ 60hz | 0.8 cfm ( 1.36 m3h ) |
| Max Pressure | 100 psi ( 6.89 bar ) |
| Max Pressure @ 50hz | 100 psi ( 6.89 bar ) |
| Max Pressure @ 60hz | 100 psi ( 6.89 bar ) |
| Max Vacuum @ 50hz | 25 in-hg ( 846.6 mbar ) |
| Max Vacuum @ 60hz | 26 in-hg ( 880.46 mbar ) |
| Weight | 8.6 lbs ( 3.9 kg ) |
| Duty Cycle | 100% |
| Warranty | 1 Year |
